New Pioneer Camper Trailer: The Details

BySam PurcellOctober 2, 2015
New Pioneer Camper Trailer: The Details

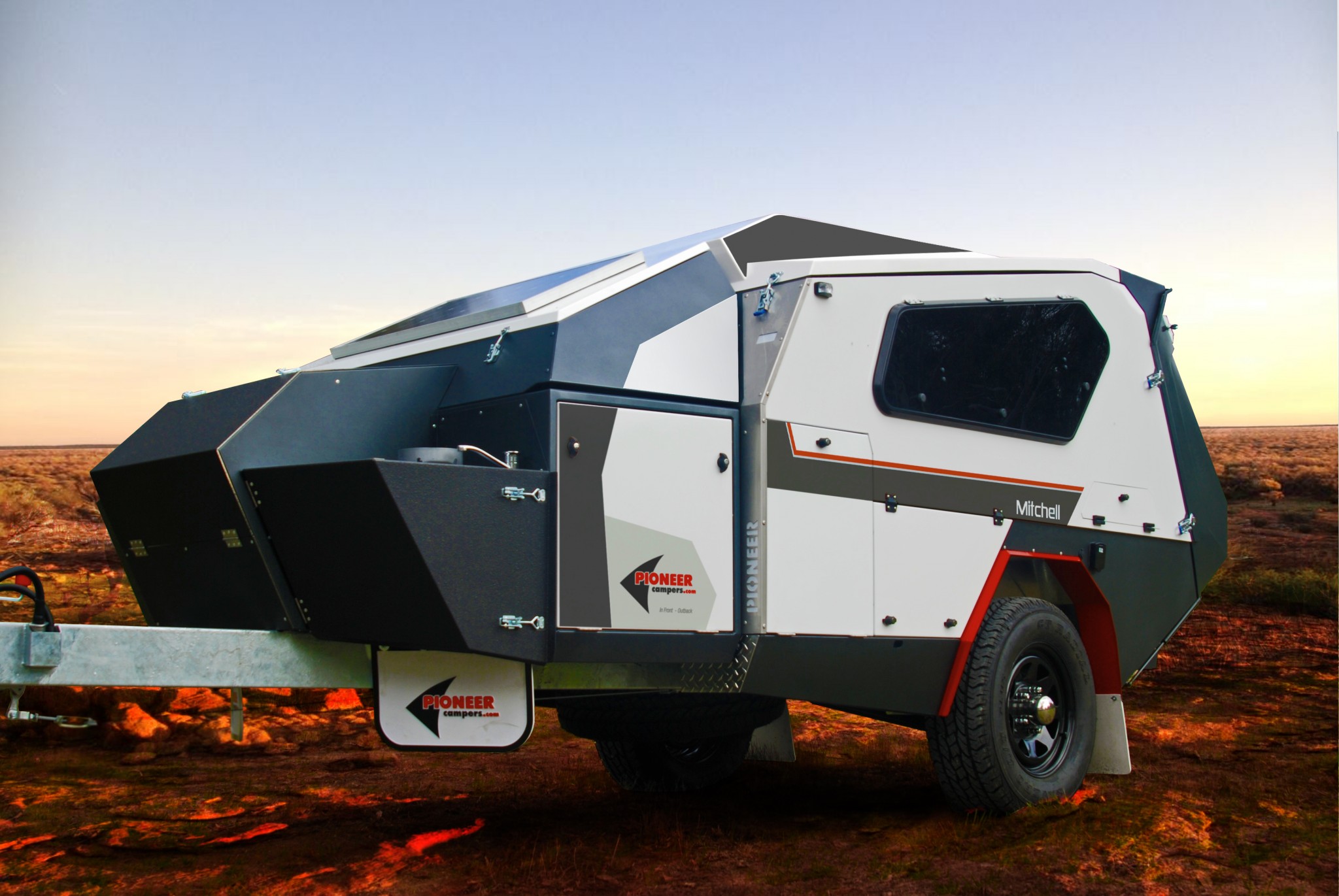

Pioneer have just recently lifted the covers off their latest camper trailer, called the Mitchell.

[x_image type=”none” float=”none” src=”https://www.mr4x4.com.au/wp-content/uploads/HERO-SHOT01.jpeg” info=”none” info_place=”top” info_trigger=”hover”]

It’s a hard-roofed, hard floored camper trailer, which looks farily similar to Track’s well renowned Tvan. Look closer though, and you’ll see that there is a big difference: The whole roof of the Mitchell is hinged, which is reported to give a big internal space when opened. We haven’t seen it open yet, as the press release is hot off the press.


The bed in the Mitchell is a queen-sized inner-spring job, and the front storage looks to be smartly combined into the design. The overall design is quite angular, which makes it look quite modern. It also comes with a shower as well, which is pretty flash!


2mm marine-grade aluminium make up the panelwork, along with insulated composite fibreglass panelling. A tare weight of 1,350 kilograms is a reasonable weight, which can be loaded up to a 2 tonne aggregrate trailer mass (ATM). Suspension is an independent trailing arm setup, from Grafta.


We’ve got the specs box below for extra information, but we’ll see what the Mitchell is really like in an upcoming test in our magazine, Pat Callinan’s 4X4 Adventures magazine. Haven’t got a subscription? Pick one up for less than half a tank of diesel today, at the [x_button shape=”square” size=”small” float=”none” href=”https://www.mr4x4.com.au/shop/” title=”MR4X4 SHOP” info=”none” info_place=”top” info_trigger=”hover”]MR4X4 SHOP[/x_button].



Travel length: 5300mm

Body length: 2900mm

External body width: 1950mm

Travel height: 2050mm

Interior height above bed: 1030mm

Tare weight: 1320kg

ATM: 2 tonne

Ball weight: 145kg

Body: 2mm Powder- coated Marine-grade aluminium, insulated composite fibre-glass panelling

Chassis: Heavy duty hot-dipped galvanised for extreme off-road conditions w/ 5 year structural warranty

Suspension: Grafta Independent trailing arm coil 2000kg rated with long-life Kevlar dry brushes w/ 5 year structural warranty

Brakes: 12” Alko electric drum

Hitch: Treg/Trigg towing hitch with 360 degree rotation & 70 degree oscillation

Wheels: 16 x 7” 265/75 – 6 stud black Sunraysia steel rims w/ GT Adventuro A/T tyres

Water: 120 litre stainless steel food-grade tank (extra 60 litre option)

Battery: 110 AH AGM deep cycle battery with Redarc battery management system 1230

Solar: 80 watt hard-wired solar panel

Gas: 2 x 9kg gas bottles

Hot water: Truma 14 litre gas hot water service to kitchen and shower

Canvas: Australian wax converted dyna-proofed canvas tent, Full awning 2m wide x 6mLength w/ 5 year warranty

Kitchen: Stainless steel roll-out kitchen with Smev sink 3-burner stove, cutlery drawer & slide-out prep tray, 90 litre Pantry, 1200mm long drawer (also accessible from inside camper), 80 litre Fridge capacity with lockable heavy duty fridge slide and LED stalk light.

Shower: Drivers side exterior shower
