When it comes to off-roading, one of the most critical yet often overlooked components in a 4X4 is the shock absorber. While many enthusiasts focus on adding accessories like winches, bull bars, and rooftop tents, the role of the suspension system, particularly the shock absorbers, is crucial in ensuring a smooth, controlled ride. Adjustable shock absorbers provide a versatile solution that allows drivers to tailor their vehicle’s handling to suit different terrains and driving conditions. But how exactly do they work?
The Basics of a Shock Absorber
Before we get into how adjustability works, it’s important to have a fundamental understanding of what is actually happening inside a shock absorber when you hit that pothole. At its core, a shock absorber is designed to manage the suspension’s movement by controlling the rate at which the springs compress and rebound. Without shock absorbers, your 4X4 would bounce down the track like a pogo stick after every bump, making for a very uncomfortable and potentially dangerous ride.
Inside a standard shock absorber, there’s a piston that moves up and down within a tube filled with oil. When your rig hits a bump, the suspension spring compresses and the shock absorbers piston is pushed into the oil-filled chamber. The movement of the piston forces the oil to pass through small valves in the piston, creating resistance. This resistance is what slows down the movement of the suspension and dampens the oscillations of the spring, keeping your tyres in contact with the road and providing stability to the vehicle.
The amount of resistance is critical, it needs to be enough to control the spring’s movement without being so stiff that it leads to a harsh ride. This balance is what makes shock absorbers so crucial to a vehicle’s handling and comfort.
So, What’s Actually Doing The Work?
The key to adjustability in these shocks lies in the metering valve, which allows oil to bypass the piston. This system is used in both front and rear shock absorbers, with slight differences in implementation depending on their location on the vehicle.
In front struts, the metering valve is typically located in the piston rod. When you turn the adjustment dial at the top of the shock, a metering rod goes down the centre of the shock shaft to the valve near the piston, this controls the flow of oil either through the piston or around it. The more the oil is forced through the piston’s internal valves, the stiffer the suspension becomes, offering greater control over the vehicle’s movement. Conversely, allowing more oil to bypass the piston softens the ride, as the suspension faces less resistance.

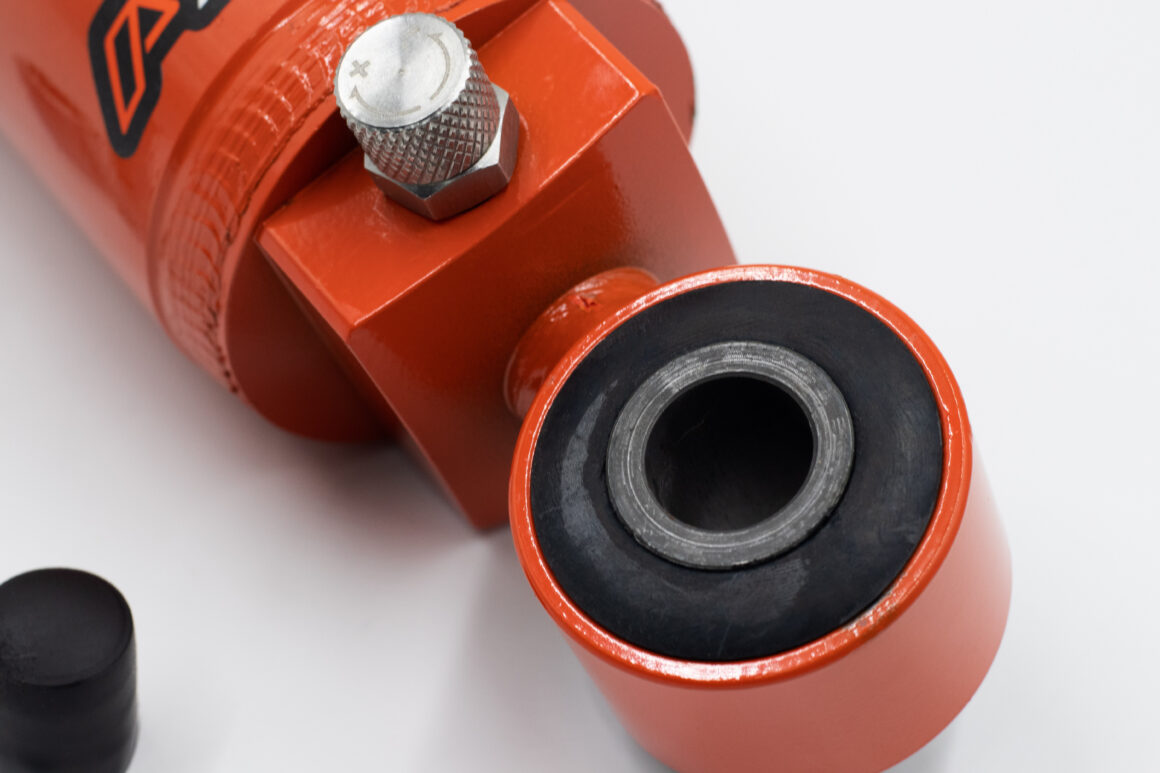

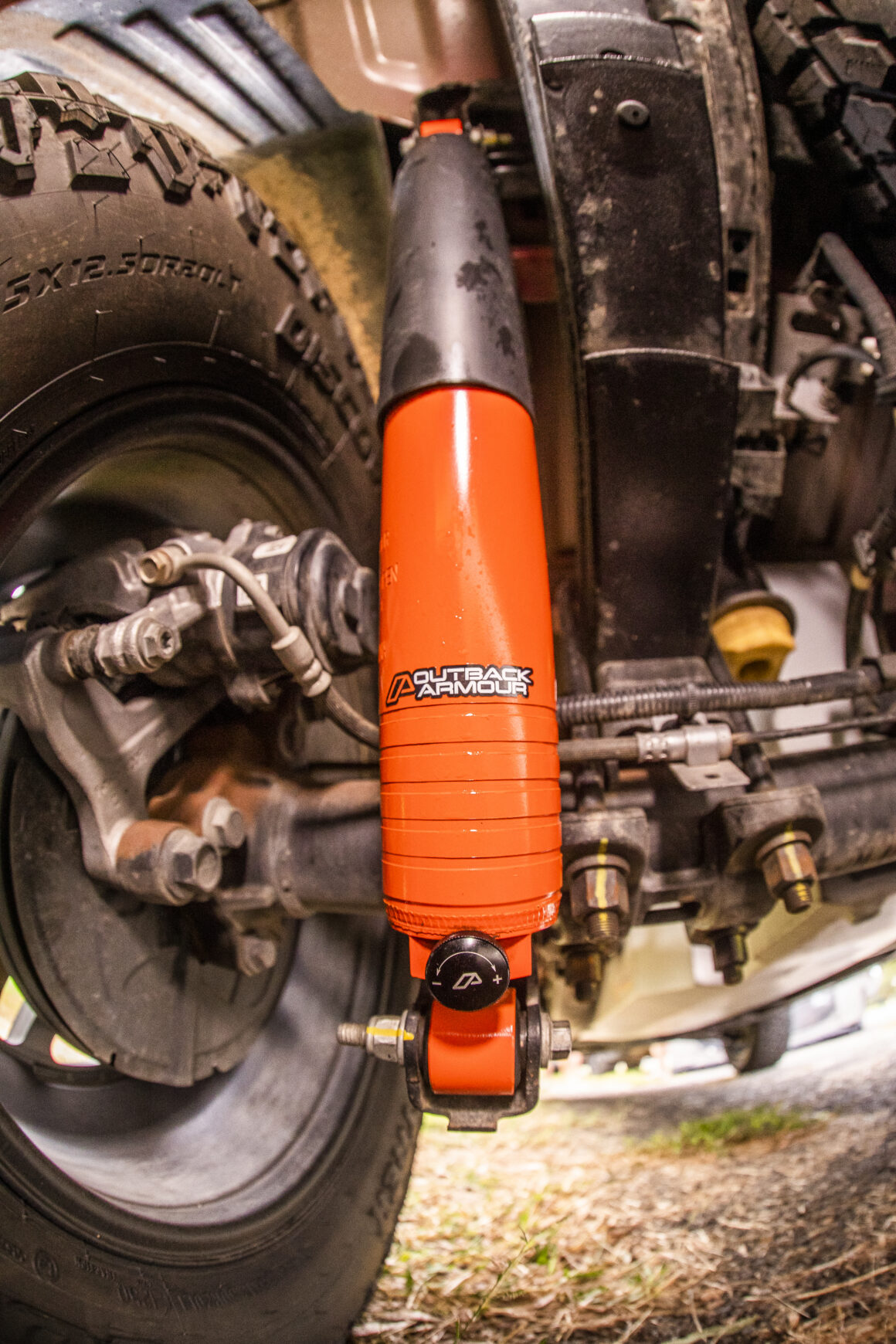

A similar approach is used in rear shocks, where the metering valve is often positioned in the bottom shock mount. Turning the dial redirects oil through an internal bypass tube, either increasing or decreasing the amount of oil that bypasses the piston. This setup ensures that the rear suspension can be finely tuned, even under varying loads, to balance comfort and control across different driving conditions or when you’re loaded to the hilt for a camping trip or stripped down for daily duties.
In essence, the metering valve is the component that gives you control over how firm or soft your ride will be. By regulating the amount of oil that bypasses the piston, it allows you to tailor the vehicle’s handling to the terrain, whether you’re navigating challenging off-road sections or cruising on smoother roads.
Bringing It All Together
Think of adjustable shock absorbers like a volume knob on your stereo, just as you’d turn the volume up for your favourite song, you can dial in more stiffness for better control when the track gets rough. Conversely, when you want to relax on a long drive, turning the dial the other way softens the ride, making the miles melt away with ease.
These shocks are particularly beneficial for those who find themselves frequently switching between different terrains. If you’re tackling rocky outcrops one day and cruising down the highway the next, the ability to adjust your suspension on the fly is invaluable. For those carrying heavy loads or towing, the additional control can make all the difference in maintaining stability and comfort.
Whether you’re a seasoned off-roader or someone who simply enjoys the versatility of a well-equipped 4X4, adjustable shocks offer the flexibility to tailor your ride to suit any situation. Lastly, a big thanks to the team at Outback Armour getting on board with this article to give us a deeper understanding of the tech that powers the Mr 4X4 fleet.
